Berridge Metal Shingles
The Berridge Curved Tee-Panel is an ideal roofing choice for concave, convex or compound curved corners and domed roof construction with solid sheathing. This panel can be curved or tapered on site, allowing for versatility with the added benefit of the exclusive vinyl weatherseal that is a part of the snap-on seam.
Materials
24 Gauge Steel Limited Availability: 22 Gauge Steel, 0.032 AluminumSpecifications

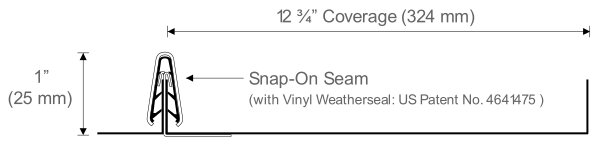

Uses: Roof, Fascia*Coverage: 12 3/4"Finishes: SmoothFasteners: ConcealedApplications: Solid sheathingSeam: 1" snap-on with extruded vinyl weatherseal
Comes In a Variety of Colors
STANDARD COLORS
METALLIC COLORS
PREMIUM COLORS
NATURAL COLORS
Additional Product Information
WATERTIGHTNESS WARRANTIES
Berridge offers Watertightness Warranties on approved roof assemblies. Watertightness Warranties are available in 20YR, 15YR, 10YR, 5YR, 2YR, & NDL terms. Berridge Watertightness Warranties are issued upon successful completion of the following requirements:
- Submission & acceptance of watertightness warranty application
- Approval of installer roof installation details
- Inspection & approval of roof installation
- Payment in full of all material invoices
- No warranty is issued unless requested by the customer within one year of material invoice date
- All warranty program requirements must be met before issuance
- Review watertightness warranty FAQs for additional information such as warrantable systems, minimum slopes, approved underlayments and sealants
PAINT FINISH WARRANTY
Berridge offers a 20-year finish warranty for the Kynar 500 /Hylar 5000 PVDF resin-based coatings which it applies on its continuous coil coating line. Berridge finish warranties are issued upon successful completion of the following requirements:
- Submission & acceptance of paint finish warranty application
- Payment in full of all material invoices
- No warranty is issued unless requested by the customer within one year of material invoice date
GALVALUME MATERIAL WARRANTY
Berridge offers a 20 year and 6 month material warranty for Prepainted Galvalume, Acrylic Coated Galvalume, and Satin Finish Galvalume*. Warranties are issued upon written request and upon successful completion of the following requirements:
- Submission & acceptance of material warranty application
- Payment in full of all material invoices
- No warranty is issued unless requested by the customer within one year of material invoice date
2-YEAR INSTALLERS WARRANTY
Berridge requires installers to guaranty their work for 2-years for all watertightness warranty projects:
- Included with all watertightness warranties
- 2-Year warranty is standard with most industry watertightness warranties
- Required by manufacturer to ensure correct installation
- Any leaks in the first two years are repaired by the installer

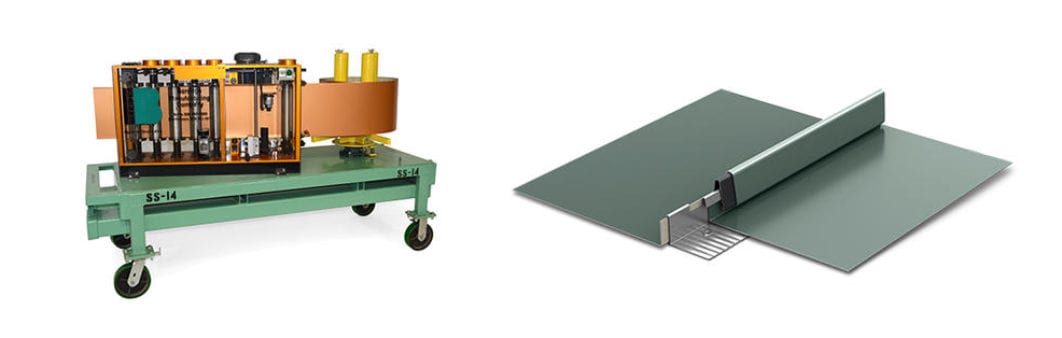

SS-14 TEE-PANEL ROLL FORMER
The Berridge Model SS-14 Portable Roll-Former forms continuous-length, eave-to-ridge straight Berridge Tee-Panels, and by hand-adjusting the last roll, also forms Curved Tee-Panels. The Berridge Model SS-14 Portable Roll Former also curves the factory-formed seam caps. Individual factory formed Tee-Clips are used with straight panels and 28-gauge Folding Tee-Clips are used with curved panels.

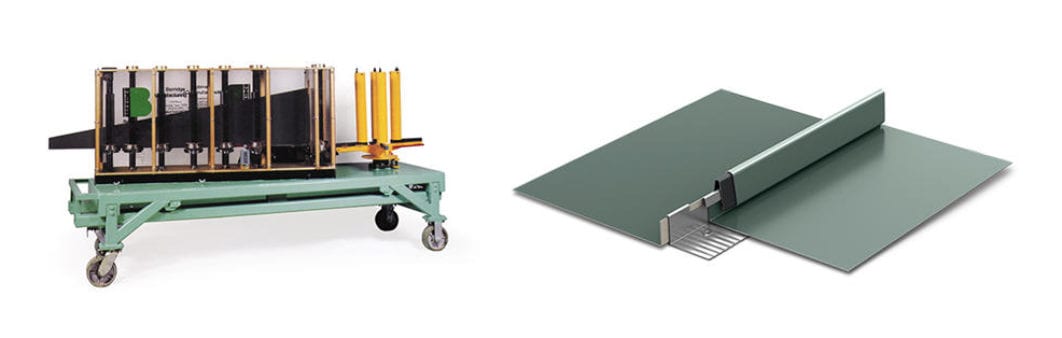

SL-24 TAPERED TEE-PANEL ROLL FORMER
A single-leg machine, designed to form the Tapered Tee-Panel or Tapered High Seam Tee-Panel using coil widths up to 23-7/8. After one leg is formed, the pan is cut to the desired tapered shape, then the second leg is formed by running the panel back through the roll former. The resulting Tapered Tee-Panels are used for conical shaped roofs.
Berridge Folding Tee-Clips are 28GA and are used for curved applications. They are available in 1 or 1-1/2 heights.
Berridge Tee-Clips are available in 24GA, 1 or 1-1/2 heights, and are produced in random colors.
Use seam splices for Tee-Panel seams longer than 40.
Berridge Seam Caps are only available for use with the Berridge Tee-Panel System and include Berridges patented Vinyl Weatherseal.
