GIDEON SNAP LOCK

Simply put, Concealed Fastener Panels hide or conceal the fasteners from being able to visually see them from the surface. Panels are secured with clips or a fastener flange that is behind or underneath the panel surface. Adjacent panels are either "snap locked" into place or require a mechanical seamer to secure them to roofing substrate. These type of panels are also generically called Standing Seam or Architectural Panels.
Go Back

Choose Between Two Options:

 Images

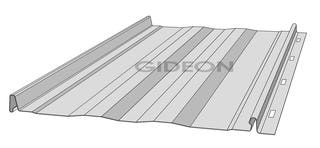

G100s

a.k.a. 1" snap-lock
  • Major ribs are 1" tall, 16" nominal on-center, 16" nominal coverage width.
  • Standard surface condition (as shown) features striations and clip relief.
  • Features a perforated fastener flange in which screws are placed.
  • Adjacent panels overlay the fastener flange and snap lock into place hiding the low profile fasteners.
  • Non-standard coverage widths are available upon request.
26 & 24 gauge - Prepainted - Galvalume - Cut-To-Length - UL Rated - Cool Color

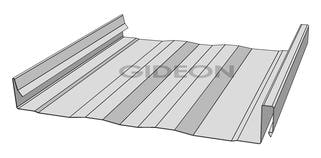

G175s

a.k.a. 1-3/4" snap-lock
  • Major ribs are 1-3/4" tall, 18" nominal on-center, 18" nominal coverage width.
  • Standard surface condition (as shown) features striations and clip relief.
  • Fastens to substrate with a clip and screws.
  • Non-standard coverage widths are available upon request.
  • Weather-Tightness Warranty available upon approval from Technical Department.
  • Meets Engineered Metal Roof System criteria, contact Gideon Steel for details.
24 gauge - Prepainted - Galvalume - Cut-To-Length - UL Rated - Cool Color
 Images

Choose From A Range of Colors:

Designed Energy Efficient

ENVIRONMENTALLY SMART COLORS

Terra Cotta

Aged Copper

Solar White

Sandstone

Surrey Beige

Colonial Red

Patina Green

Regal White

Ash Gray

Sierra Tan

Regal Red*

Hemlock Green*

Stone White

Dove Gray

Medium Bronze

Burgundy*

Hartford Green*

Regal Blue

Slate Gray

Mansard Brown

Matte Black

Evergreen

Regal Blue

Charcoal Gray

Dark Bronze

METALLIC COLORS

Silver*

Copper*

Champagne*

Pre-Weathered Galvalume*

WEATHERED METAL COLORS

Galv-Ten Raw*

Copper-Ten Raw*

Cor-Ten AZP Raw*

NON-PAINTED COLOR

Acrylic Coated Galvalume

*Available at a slight price premium
Building a legacy, Gideon's source for cutting edge SMP paint formulation is recognized for its durability, offering strong protection against chalking and fading, preserving brilliant color and gloss. This enhanced Silicone Modified Polyester resin delivers performance while enduring extreme weather conditions.

Black

Gallery Blue

Fern Green

Burnish Slate

Berry*

Hawaiian Blue*

Hunter Green*

Charcoal Grey*

Rustic Red*

Brown*

Colony Green*

Ash Grey*

Crimson Red

Tan*

Desert Sand

Polar White

Copper Metallic

Ivory*

Light Stone*

Galvalume

*Indicates Standard Color
