Berridge Metal Shingles

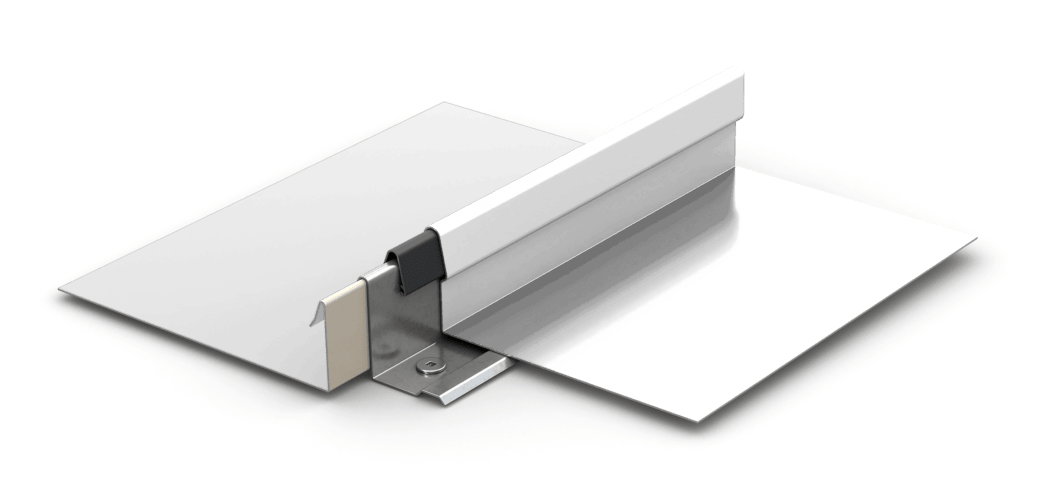

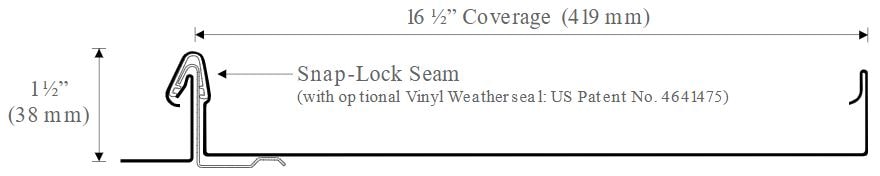

The Berridge Cee-Lock architectural metal standing seam panel is designed for residential or commercial construction over solid sheathing. This 1 high panel incorporates an integral snap-lock seam and an optional extruded vinyl weatherseal. The standard coverage option is 16 1/2 and its optional 11 1/2 coverage adds versatility.

Materials


RSI-Roofing Services, Inc. Images 24 and 22 Gauge Steel
RSI-Roofing Services, Inc. Images 0.032 Aluminum

Specifications


RSI-Roofing Services, Inc. ImagesUses: Roof, Fascia*
RSI-Roofing Services, Inc. ImagesCoverage: 16 1/2" or 11 1/2"**
RSI-Roofing Services, Inc. ImagesFinishes: Smooth, Optional Striations
RSI-Roofing Services, Inc. ImagesFasteners: Concealed
RSI-Roofing Services, Inc. ImagesApplications: Solid sheathing
RSI-Roofing Services, Inc. ImagesSeam: 1 1/2" snap-lock seam
RSI-Roofing Services, Inc. ImagesOptional: Extruded vinyl weatherseal*

Comes In a Variety of Colors


 Images
Go Back

Additional Product Information

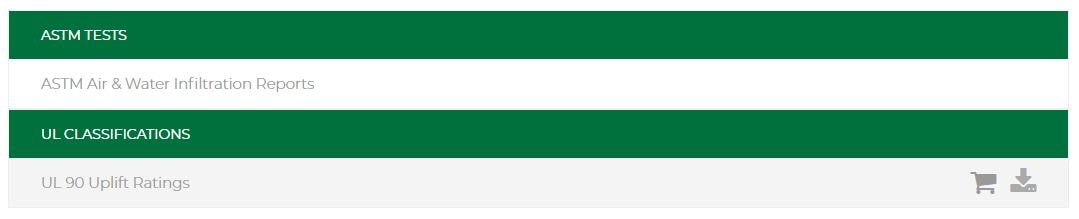

ASTM Tests
 Images

WATERTIGHTNESS WARRANTIES

Berridge offers Watertightness Warranties on approved roof assemblies. Watertightness Warranties are available in 20YR, 15YR, 10YR, 5YR, 2YR, & NDL terms. Berridge Watertightness Warranties are issued upon successful completion of the following requirements:

  • Submission & acceptance of watertightness warranty application
  • Approval of installer roof installation details
  • Inspection & approval of roof installation
  • Payment in full of all material invoices
  • No warranty is issued unless requested by the customer within one year of material invoice date
  • All warranty program requirements must be met before issuance
  • Review watertightness warranty FAQs for additional information such as warrantable systems, minimum slopes, approved underlayments and sealants
 Images

PAINT FINISH WARRANTY

Berridge offers a 20-year finish warranty for the Kynar 500 /Hylar 5000 PVDF resin-based coatings which it applies on its continuous coil coating line. Berridge finish warranties are issued upon successful completion of the following requirements:

  • Submission & acceptance of paint finish warranty application
  • Payment in full of all material invoices
  • No warranty is issued unless requested by the customer within one year of material invoice date
 Images

GALVALUME MATERIAL WARRANTY

Berridge offers a 20 year and 6 month material warranty for Prepainted Galvalume, Acrylic Coated Galvalume, and Satin Finish Galvalume*. Warranties are issued upon written request and upon successful completion of the following requirements:

  • Submission & acceptance of material warranty application
  • Payment in full of all material invoices
  • No warranty is issued unless requested by the customer within one year of material invoice date
 Images

2-YEAR INSTALLERS WARRANTY

Berridge requires installers to guaranty their work for 2-years for all watertightness warranty projects:

  • Included with all watertightness warranties
  • 2-Year warranty is standard with most industry watertightness warranties
  • Required by manufacturer to ensure correct installation
  • Any leaks in the first two years are repaired by the installer
 Images

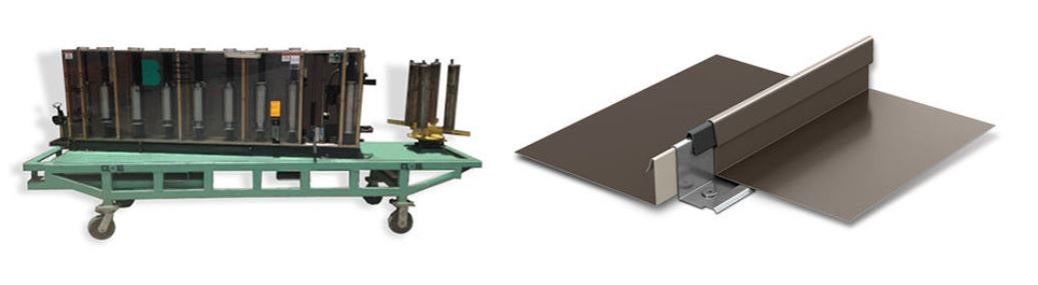

CL-16 CEE LOCK (11 1/2") PANEL

 Images

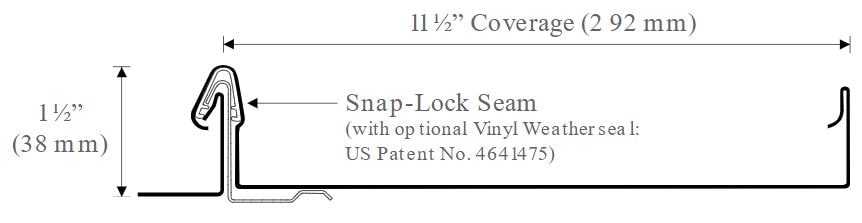

The Berridge Model CL-16 Portable Roll Former forms continuous-length Berridge Cee-Lock (11 1/2) Panels. Berridge Cee-Lock panels have an integrated snap-lock seam with an optional patented vinyl weatherseal that can be applied during the roll forming process. The 11 1/2" Cee-Lock panels are only available in a smooth finish. Use individual factory formed Cee-Lock Clips or Continuous Cee-Ribs over solid sheathing.


CL-21 CEE-LOCK ROLL FORMER

 Images

The Berridge Model CL-21 Portable Roll-Former forms continuous-length, eave-to-ridge straight Berridge Cee-Lock Panels. Berridge Cee-Lock panels have an integrated snap-lock seam with an optional patented vinyl weatherseal that can be applied into the female leg during the roll forming process. Cee-Lock panels are available smooth or with striations designed to minimize the appearance of waviness, or oil-canning. Use individual factory formed Cee-Clips or Continuous Cee-Ribs over solid sheathing.

RSI-Roofing Services, Inc. Images

Berridge patented Vinyl Weatherseal is recommended for most projects, but is required for open framing. Consult BMC for open framing projects using Cee-Lock.

RSI-Roofing Services, Inc. Images

Berridge Cee-Clips can be used over solid decking applications.

RSI-Roofing Services, Inc. Images

Berridge Continuous Cee-Rib can be used for higher performance. It is required for open framing applications.

RSI-Roofing Services, Inc. Images

Panel support clips are required for expansion joints. Use at purlin and other framing locations to provide support for the ends Cee-Ribs.

RSI-Roofing Services, Inc. Images

Die-stamped to match the panel profile. Use as a mechanical weather closure at ridges, headwalls, and slope transitions. Use Zee-Flashing for hips.

RSI-Roofing Services, Inc. Images

Extra Cee-Lock female legs are used for panel turndowns to fascia at eaves. Refer to page CL-64 of the installation details for more info.
